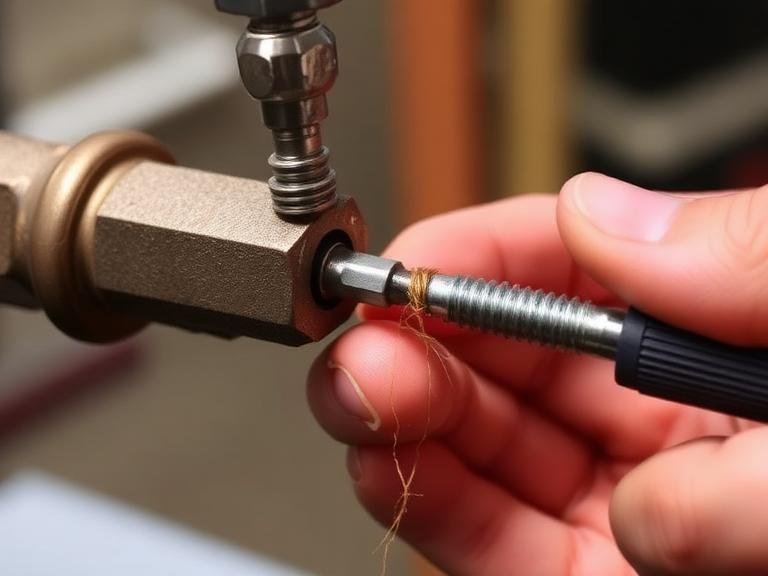

How to Use a Tap to Fix Threads Effectively?

In the realm of mechanical engineering and metalworking, encountering stripped, cross-threaded, or heavily oxidized internal threads is an inevitable challenge. Machinists, mechanics, and maintenance technicians frequently face scenarios where a fastener will no longer seat properly. In these critical moments, you must understand exactly how to use a tap to fix threads without causing further irreversible damage to the parent material.

1. Introduction to Thread Repair

When you use a tap to fix threads, you are essentially engaging in a precise restorative machining process. Unlike cutting new internal threads into a blank bore, restoring existing threads requires a delicate touch to catch the original thread pitch rather than cutting a destructive secondary path. From our experience at MisolTap, mastering the ability to use a tap to fix threads saves countless hours of downtime and prevents the costly replacement of expensive cast components.

2. Understanding Thread Damage

Before you use a tap to fix threads, it is crucial to assess the extent of the damage. Thread damage generally falls into three categories: galling, cross-threading, and complete stripping. Galling occurs due to friction and lack of lubrication between the fastener and the internal thread, causing localized material transfer. Cross-threading happens when a fastener is forced into a hole at an incorrect angle, cutting across the original thread crests. Stripping is the sheer physical removal of the thread material due to excessive torque.

If the threads are merely galled or mildly cross-threaded, you can highly effectively use a tap to fix threads. However, if the hole is completely stripped smooth, relying solely on a standard tap will not work, as there is no remaining material to form the thread profile. In such extreme cases, thread inserts or larger oversizing techniques are required. We recommend thoroughly inspecting the bore with a flashlight and a pick before attempting to use a tap to fix threads.

3. Selecting the Right Tools

The success of the operation when you use a tap to fix threads relies entirely on the quality and specification of the tools utilized. Using an incorrect thread pitch or a low-quality tap will destroy the remaining material. You must first use a thread pitch gauge to correctly identify the specifications of the fastener that belongs in the hole. Once identified, you select the corresponding tap.

3.1 Understanding MisolTap Standards

Since our founding in 2005, MisolTap has integrated R&D, production, and global sales to produce tools that adhere to the strictest international standards. When you use a tap to fix threads, selecting the proper geometry is vital. We provide our clients with specific configurations:

• DIN371 Thread Tap: Characterized by its reinforced shank, the DIN371 Thread Tap is exceptional for smaller metric sizes. We recommend this tool when you use a tap to fix threads in high-stress applications where tool rigidity is paramount to prevent snapping inside the hole.
• JIS Thread Tap: Manufactured to Japanese Industrial Standards, the JIS Thread Tap features unique thread profiles and tolerances ideal for repairing threads on imported machinery and automotive components. When professionals use a tap to fix threads on Asian-manufactured equipment, the JIS Thread Tap guarantees precise thread engagement.
• IOS-529 Thread Tap: The IOS-529 Thread Tap provides a versatile, globally recognized standard suitable for a wide variety of general-purpose repairs. From our experience, keeping a set of IOS-529 Thread Taps in the maintenance bay ensures readiness for almost any restoration task.

4. Preparation Before Thread Repair

Proper preparation separates a successful repair from a disastrous one. When you prepare to use a tap to fix threads, you must eliminate all variables that could cause the tap to bind or cut improperly. Start by removing any loose metal shavings, dirt, or rust from the hole using compressed air and a non-residue solvent. A clean workspace ensures that the cutting edges of the tap engage only with the deformed parent metal, rather than grinding debris into the bore.

5. The Core Steps to Use a Tap to Fix Threads

The actual procedure to use a tap to fix threads requires patience and a systematic approach. Follow these precise steps established by our engineering team to ensure optimal results.

5.1 Step 1: Cleaning and Alignment

Place the component in a secure vise if it is removable. If working on a stationary machine block, ensure your body position allows for a straight approach. The most critical moment when you use a tap to fix threads is the initial alignment. The tap must enter the hole perfectly parallel to the original bore axis. Use a tap wrench that provides balanced, two-handed control. Never use an adjustable crescent wrench or locking pliers, as they apply uneven lateral forces that will break the tap.

5.2 Step 2: Lubrication

Never use a tap to fix threads dry. The friction generated during the repair process produces immense heat, which can dull the cutting edges of the tap and cause the metal chips to weld onto the tool. Apply a generous amount of high-quality tapping fluid or cutting oil to both the internal bore and the flutes of the tap. For aluminum, a specialized aluminum cutting fluid or even WD-40 is acceptable; for steel, use a sulfurized cutting oil.

5.3 Step 3: The Initial Engagement

Insert the tap into the hole and apply very light downward pressure while turning clockwise (for standard right-hand threads). Your goal here is to feel the tap drop into the existing thread path. Do not force it. When you use a tap to fix threads, you should feel a slight click or resistance as the threads align. Once aligned, turn the tap wrench slowly. You should encounter moderate resistance as the tap encounters the damaged section and begins reshaping the metal.

5.4 Step 4: The Chip Clearing Method

The golden rule when you use a tap to fix threads is the forward-and-back chip clearing technique. For every half to one full turn forward, you must reverse the tap by a quarter to a half turn. You will feel a distinct “snap” as the metal chip breaks off into the flute of the tap. This prevents long, continuous chips from binding the tool. Continue this process—forward to cut, backward to clear—until you have navigated past the damaged section of the threads.

5.5 Step 5: Final Inspection

Once the tap turns freely through the previously damaged area, carefully back the tap entirely out of the hole. Clean the hole once more with compressed air to remove the metal chips and residual cutting fluid. Test the repair by threading a brand-new fastener into the hole by hand. It should spin freely without binding. If successful, you have correctly managed to use a tap to fix threads.

6. Adapting the Process for Different Materials

From our experience, the material you are working on drastically alters how you should use a tap to fix threads. For example, cast iron is brittle and typically chips easily without creating long stringy shavings; therefore, it can often be tapped dry or with minimal lubrication. However, materials like stainless steel work-harden quickly. When you use a tap to fix threads in stainless steel, you must use heavy, sulfur-rich cutting oils and maintain steady cutting pressure to prevent the material from hardening against the tap.

Aluminum is incredibly soft and prone to galling. When operators use a tap to fix threads in aluminum blocks, they must be exceptionally careful not to cross-thread the repair itself, as the tap will easily cut a new path if forced, ruining the part completely.

7. Summary Table: Thread Repair Workflow

To provide a quick reference for technicians on the shop floor, we have compiled the procedure to use a tap to fix threads into the following responsive guide table.
